Real estate transactions regularly create the need for an environmental site assessment. Confirming the presence or absence of underground storage tanks (USTs) can be a critical factor in contract closing. GPR reflection mapping surveys are commonly used to identify the presence of USTs. The example presented shows five storage tanks plus related pipes discovered at the site of a gasoline station.

Learn more

Noggin®

Overview

Adaptable, high-performance GPR

Noggin® GPR systems have been recognized by leading researchers as providing the highest quality GPR data in the world.  They are also built to perform in the most demanding conditions around the globe.

Adaptable, proven GPR for any application

Available in four center frequencies and four standard configurations, Noggin® systems can collect data in any environment for any application. Noggins span the depths and resolutions required for subsurface investigations.Choose the combination of center frequency and configuration best suited to your application and terrain.

Noggin®
100 250 500 1000

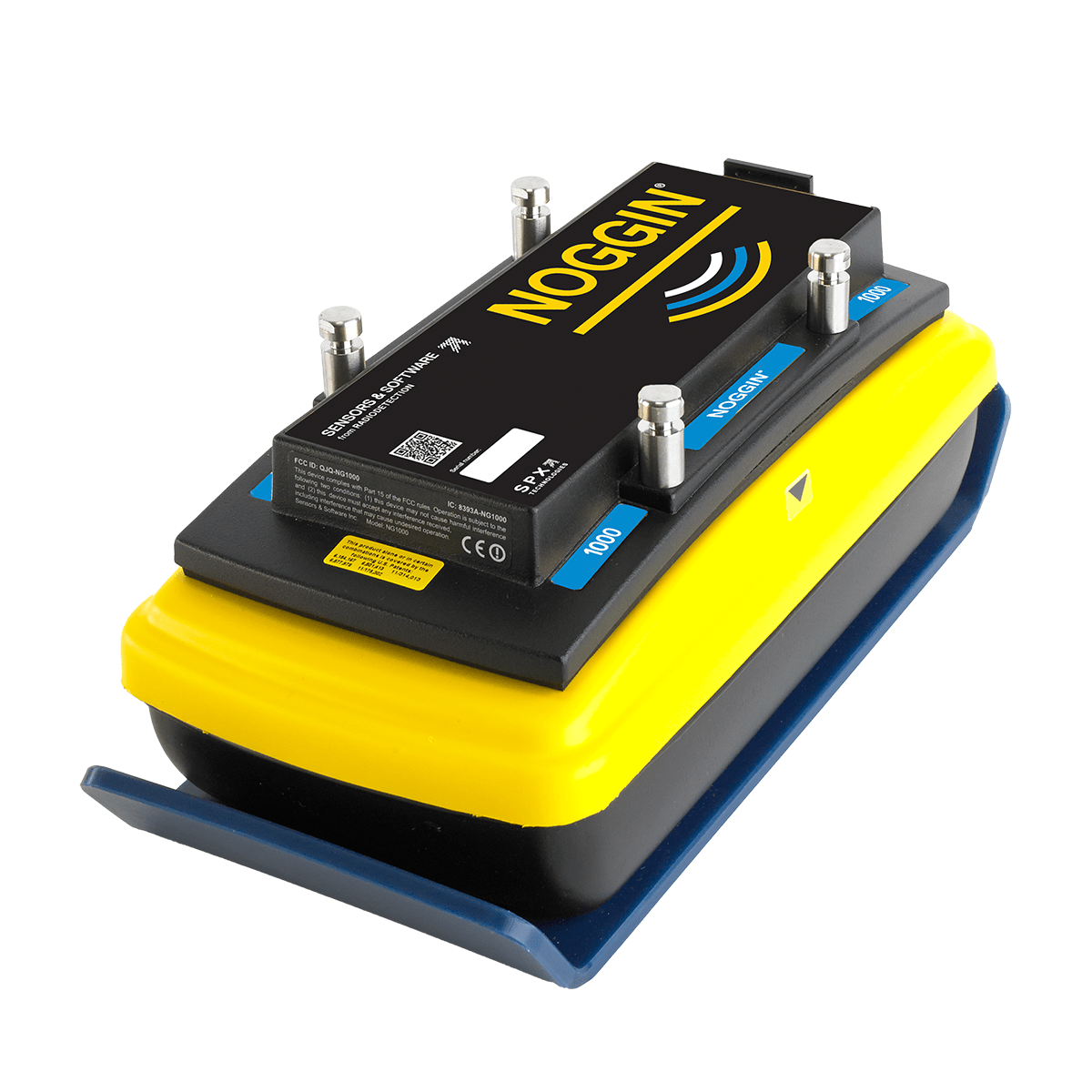

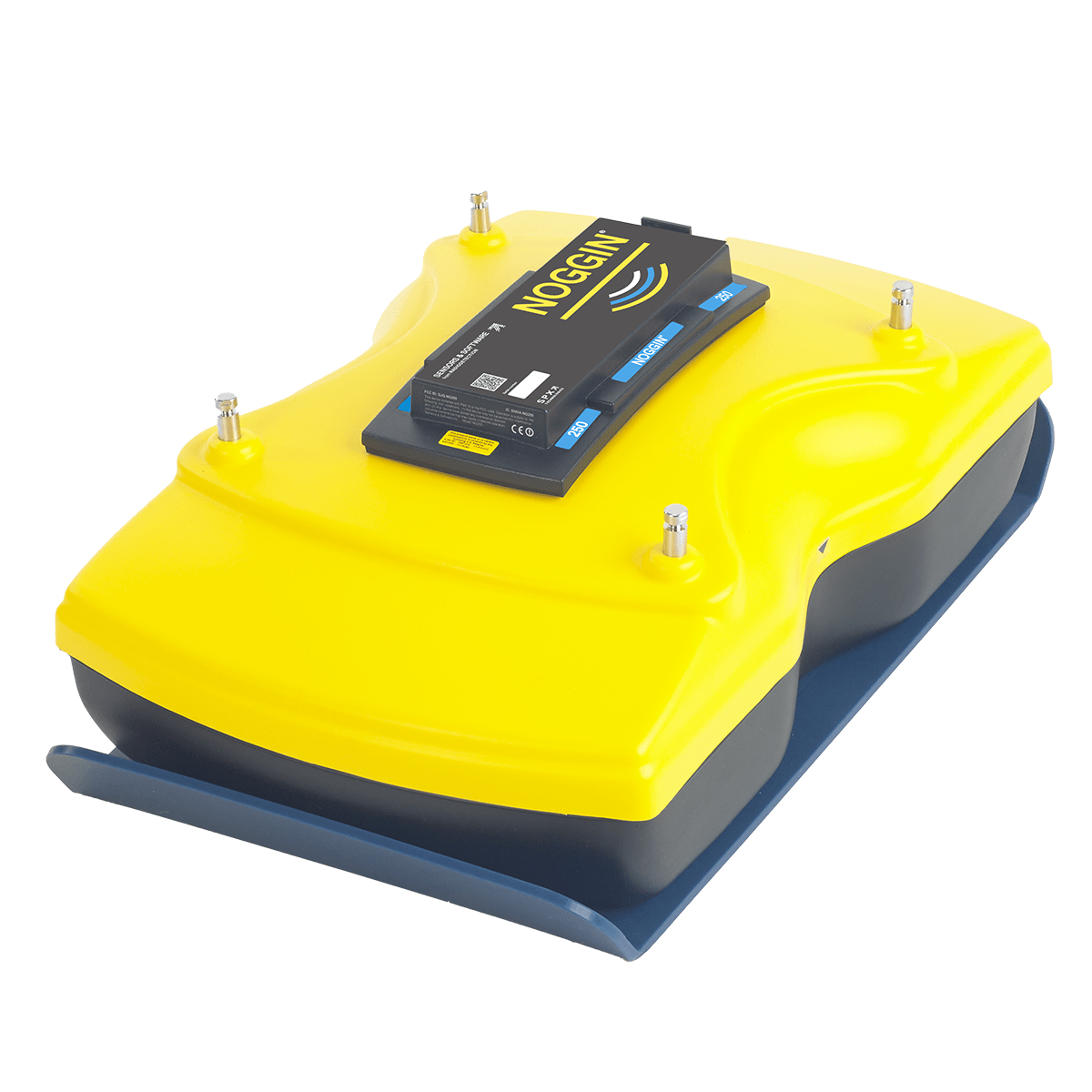

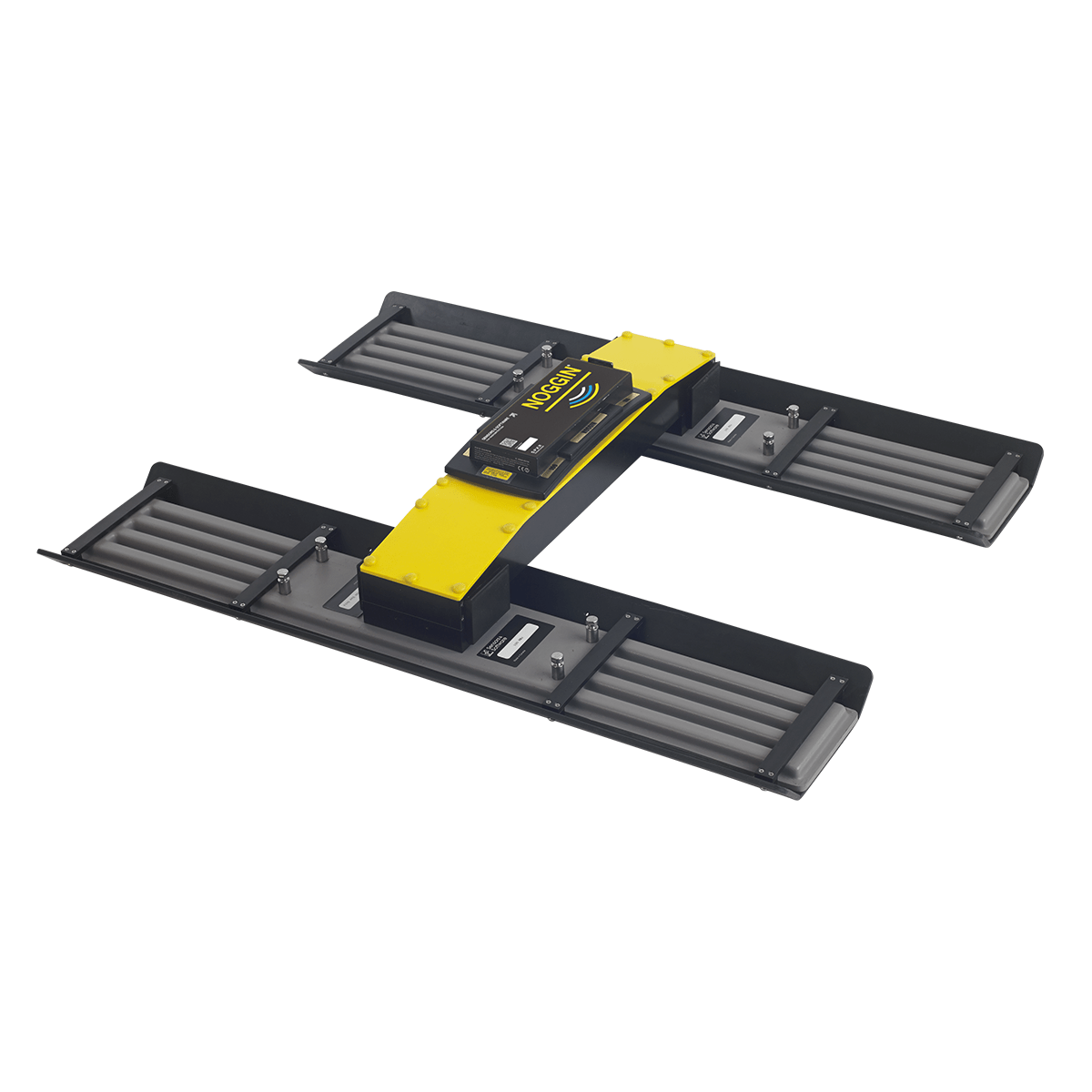

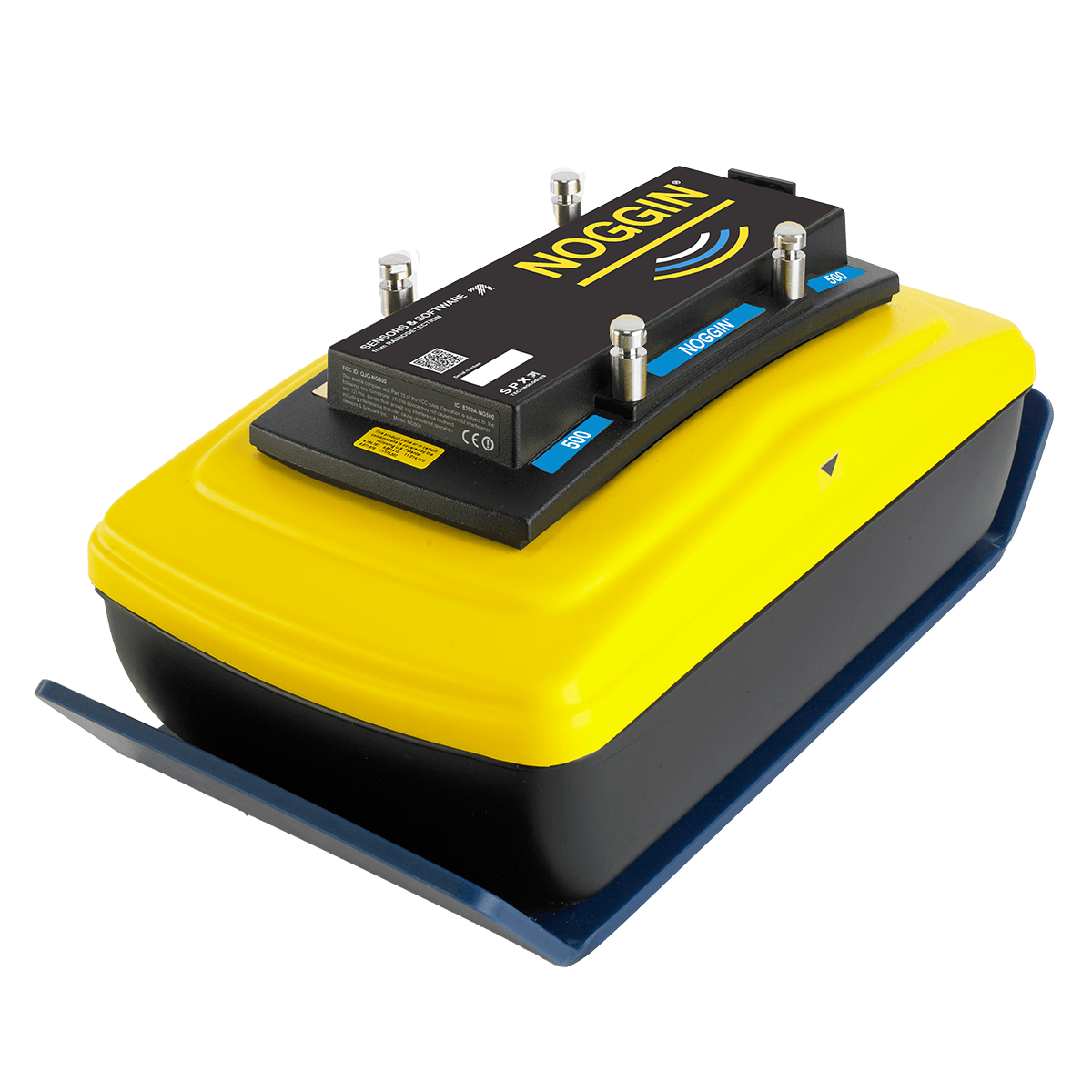

Noggin 100 GPR Sensor Noggin 250 GPR sensor Noggin 500 GPR sensor Noggin 1000 GPR sensor
Configuration Applications (right)
Terrain (below)
Geologic mapping and geotechnical applications SUM/SUE, Underground storage tanks (UST), Drainage systems Archaeology, Forensics Pavement, Bridge deck, concrete assessment

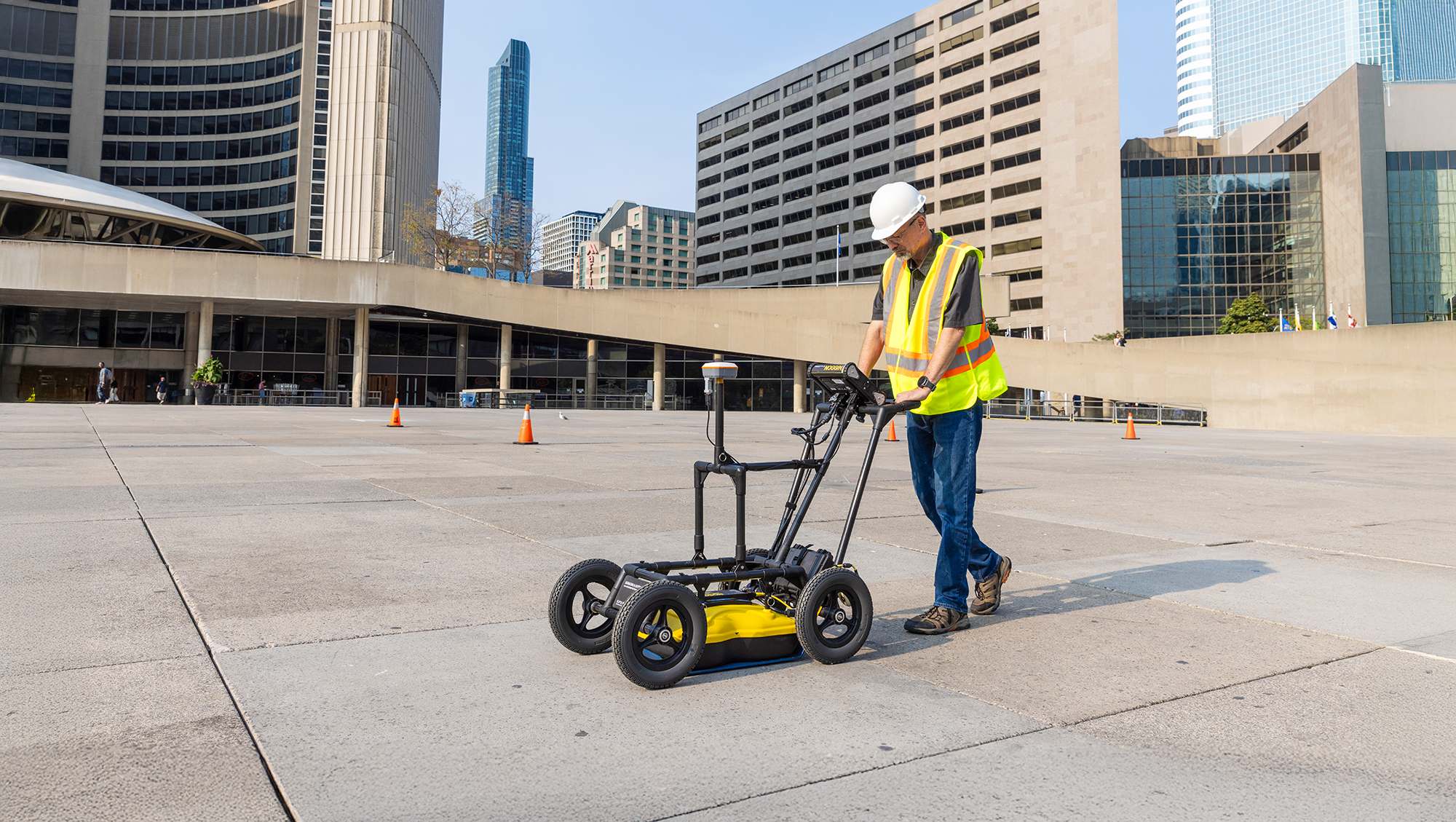

SmartCart:
Durable, 4-wheeled, folding cart

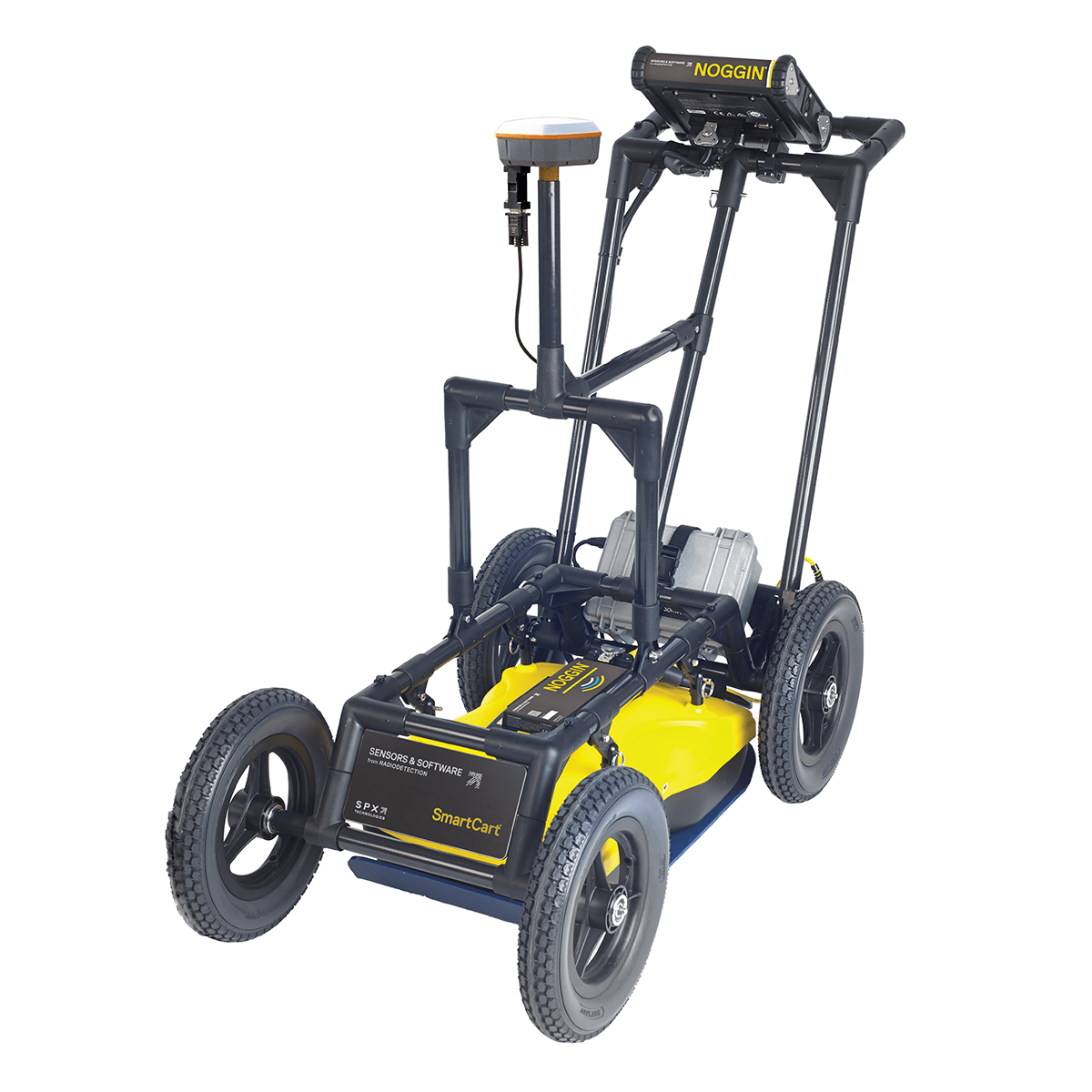

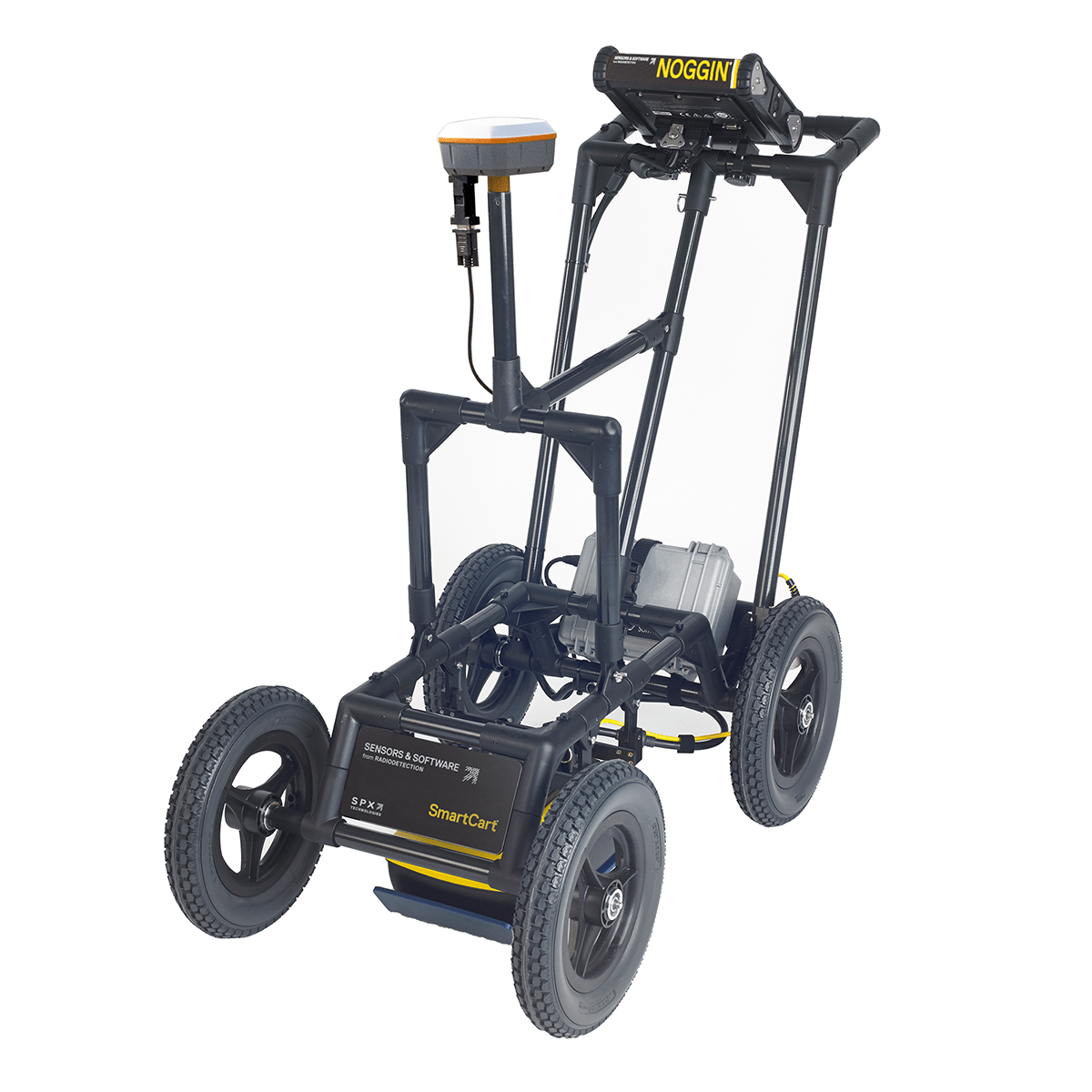

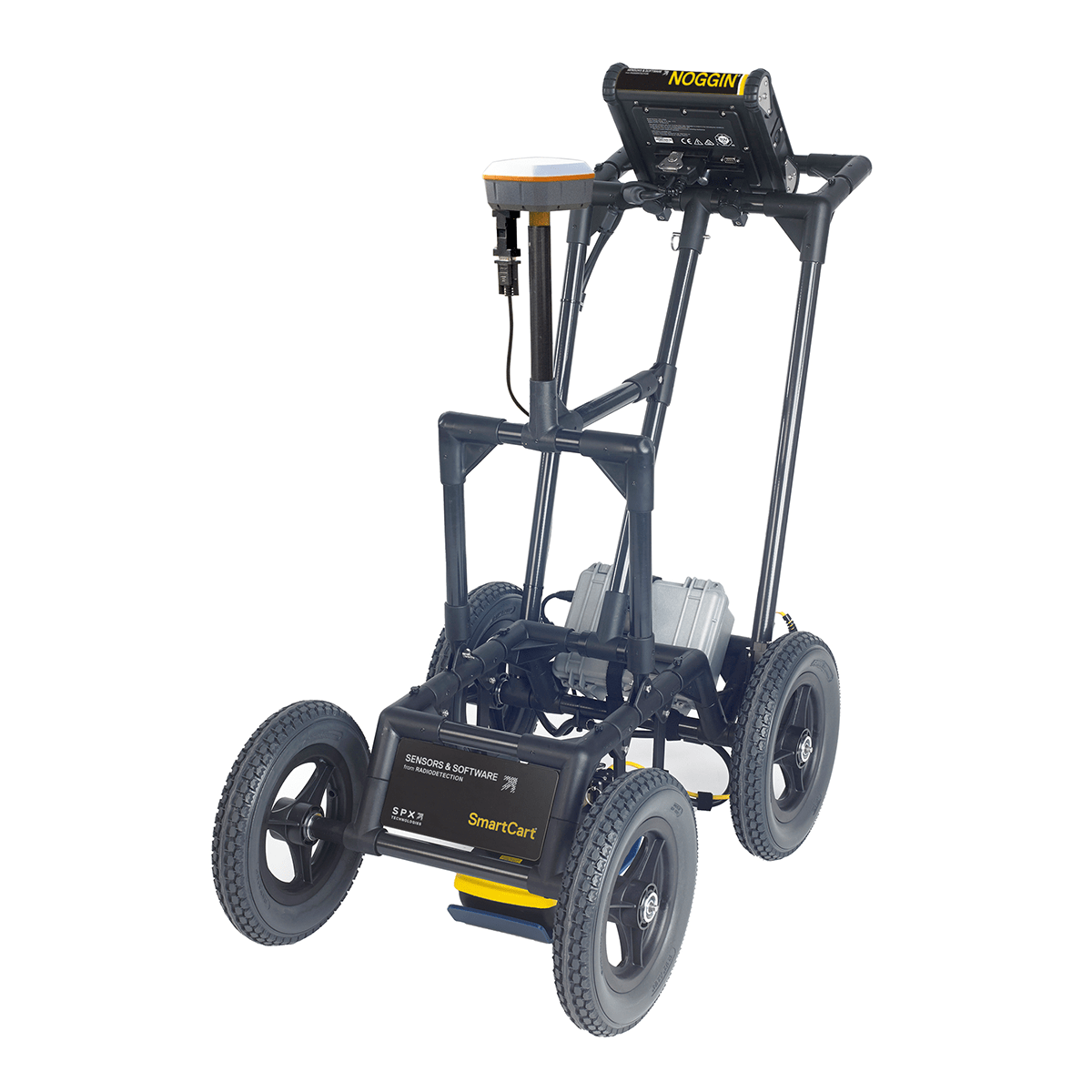

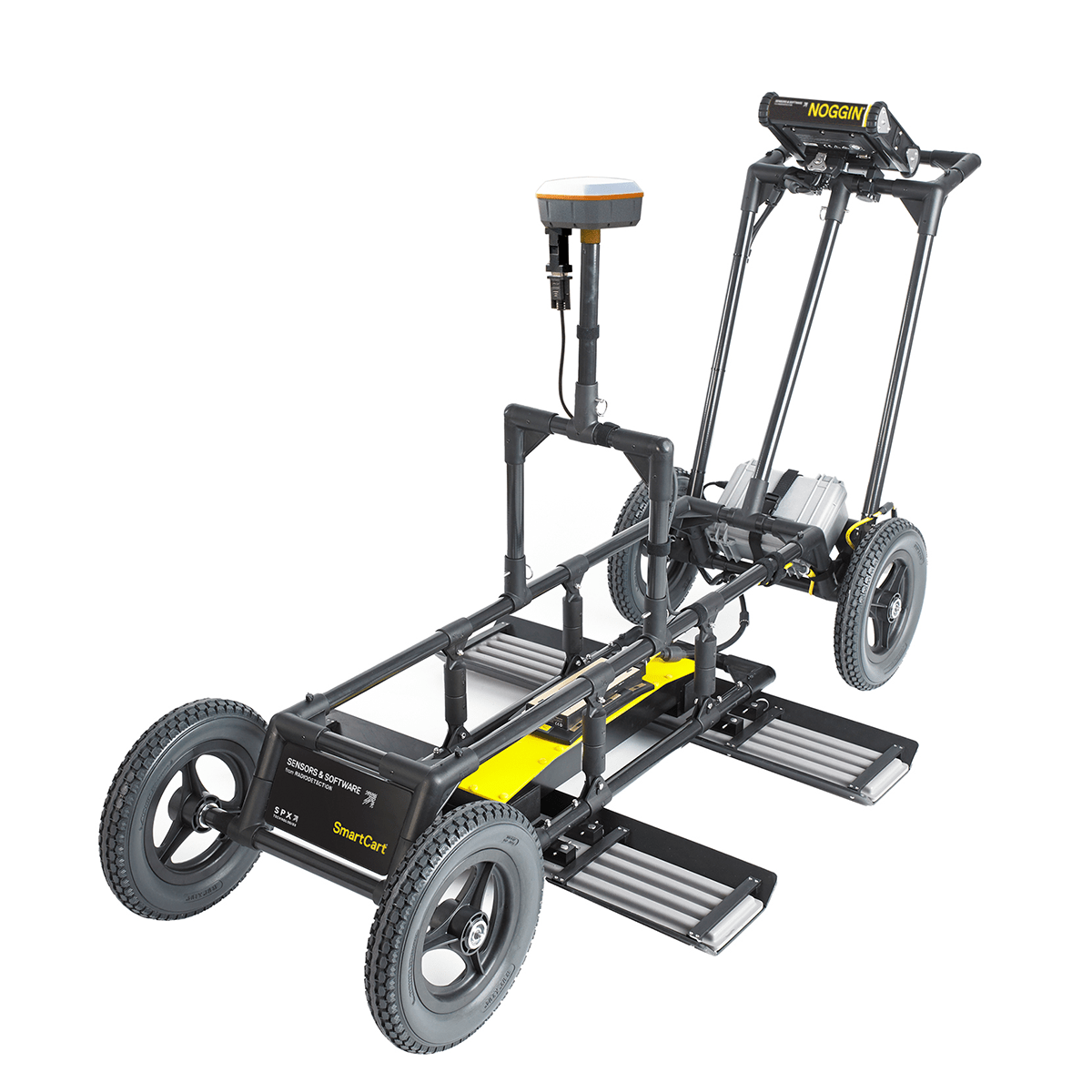

Most terrains; flat to moderately rough Noggin 100 GPR on the SmartCart Noggin 250 GPR on the SmartCart Noggin 500 GPR on the SmartCart Noggin 1000 GPR on the SmartCart
SmartTow:
Light, compact Tow

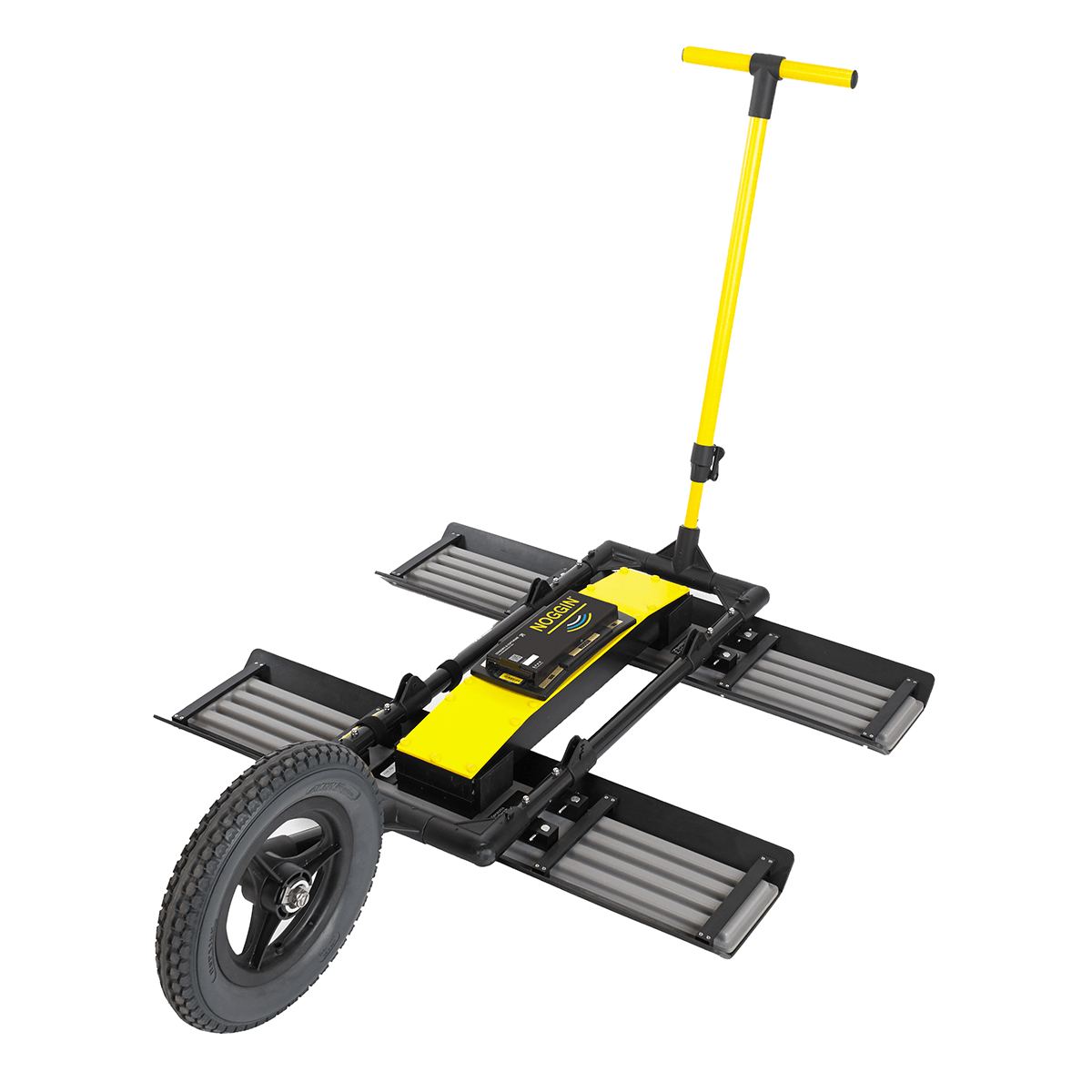

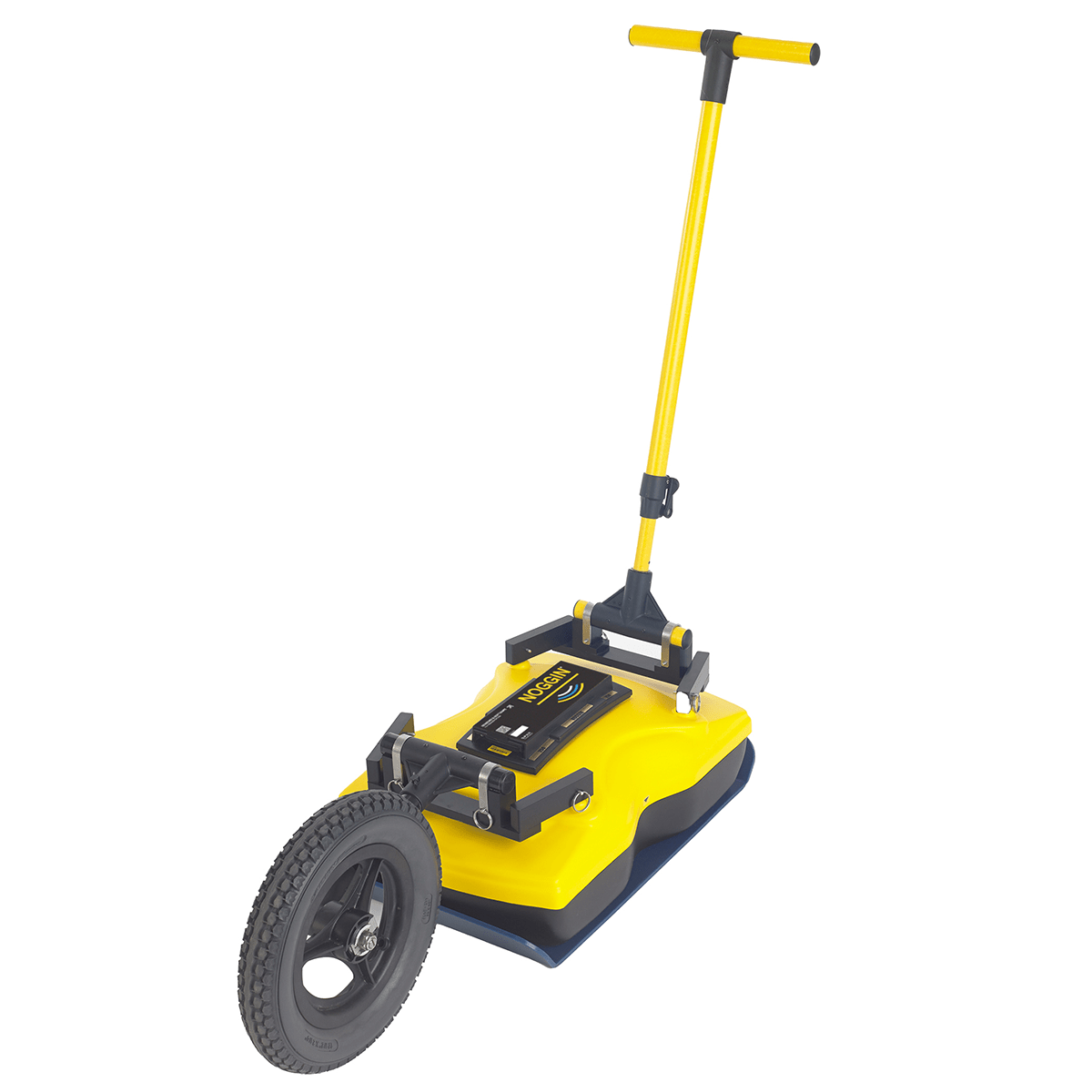

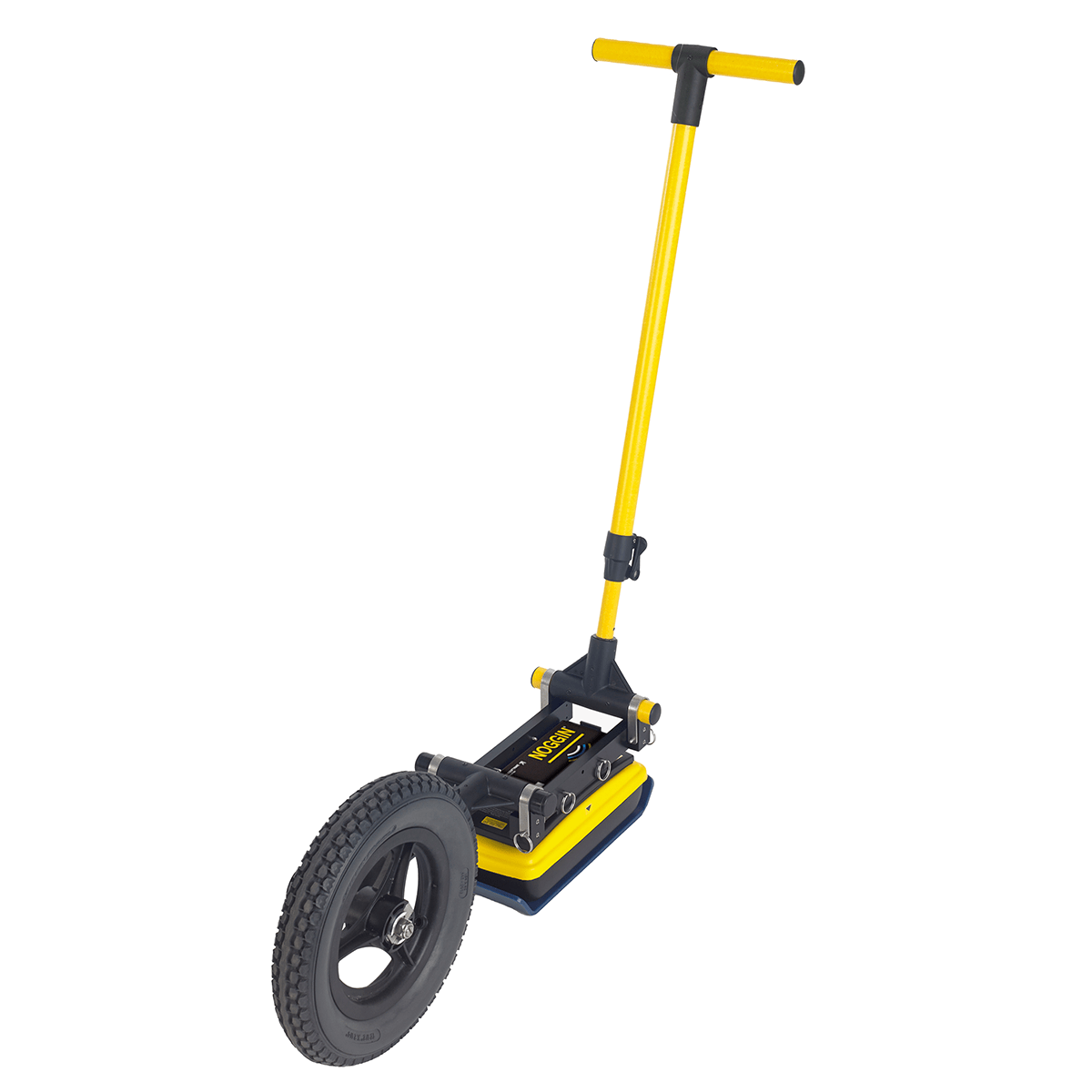

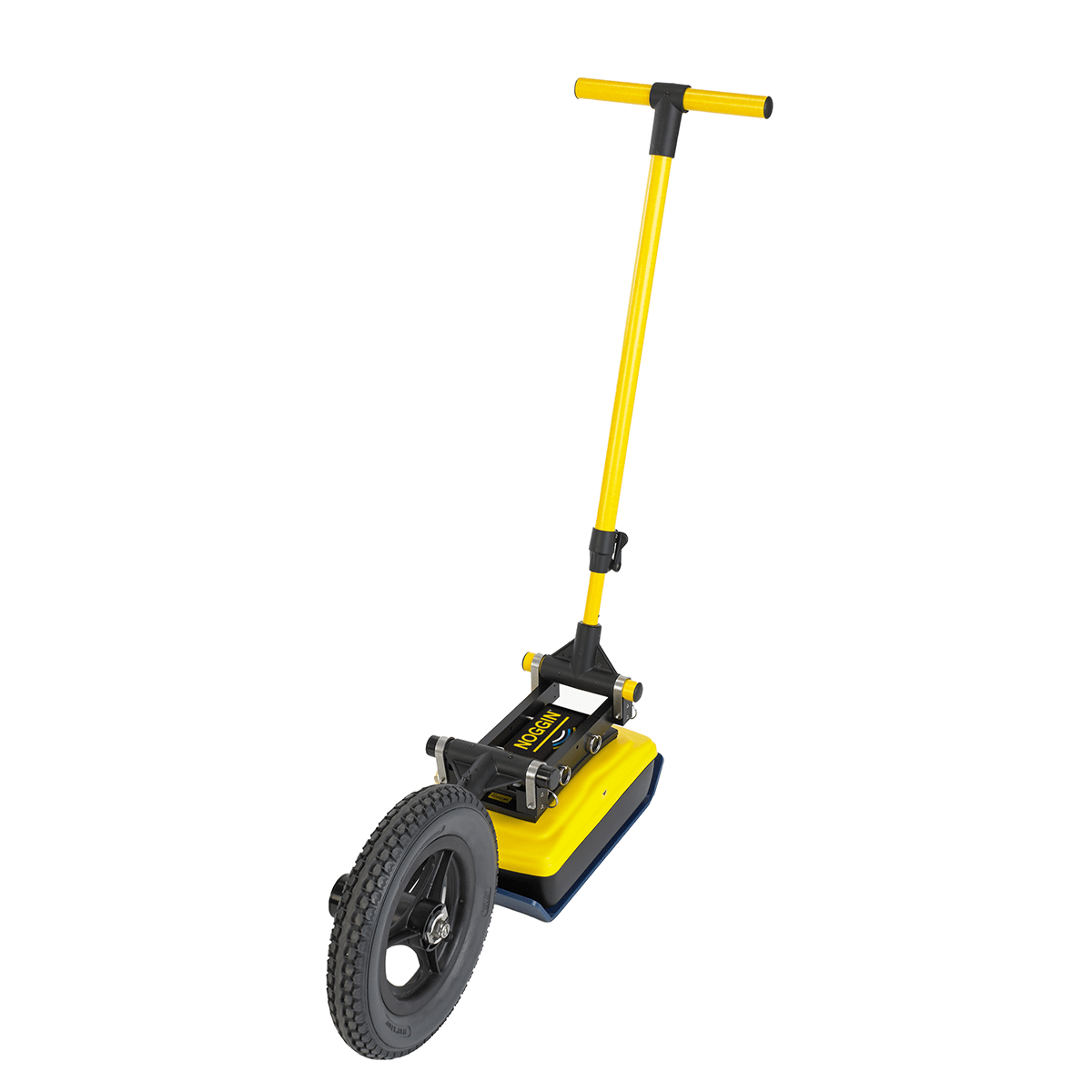

Rough or difficult terrain; steep hills Noggin 100 GPR on the SmartTow Noggin 250 GPR on the SmartTow Noggin 500 GPR on the SmartTow Noggin 1000 GPR on the SmartTow
SmartChariot:
Trailer attaches to any vehicle with a hitch

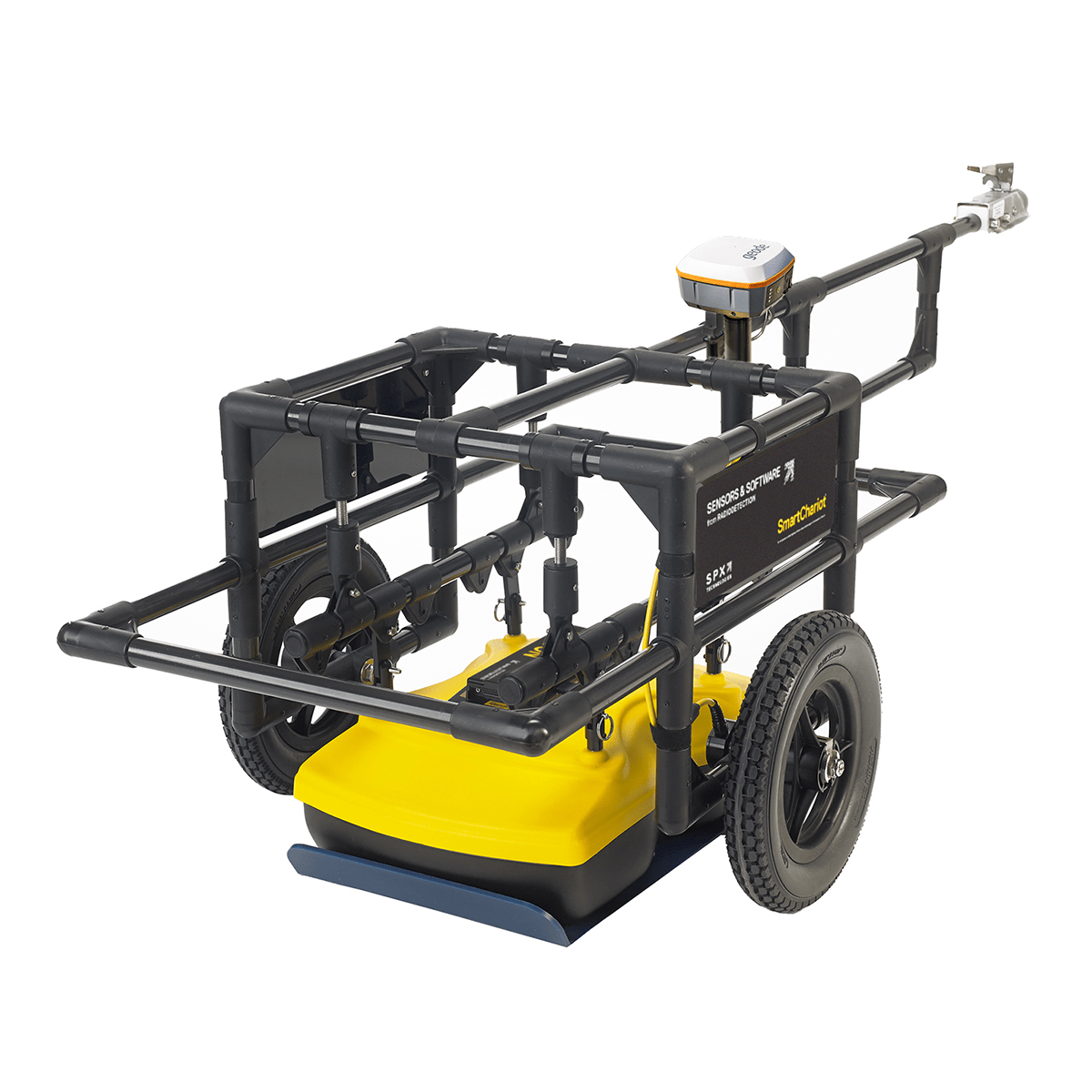

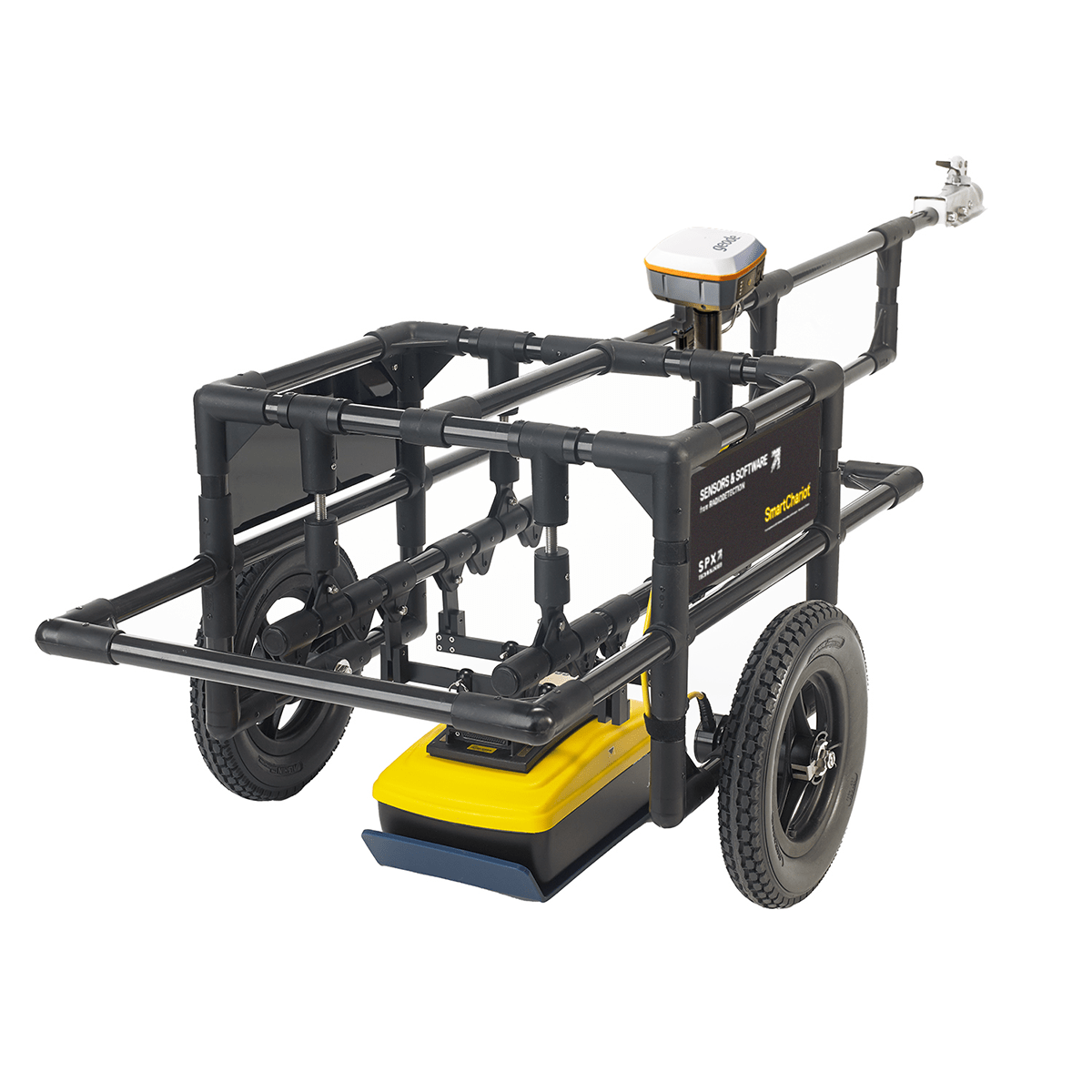

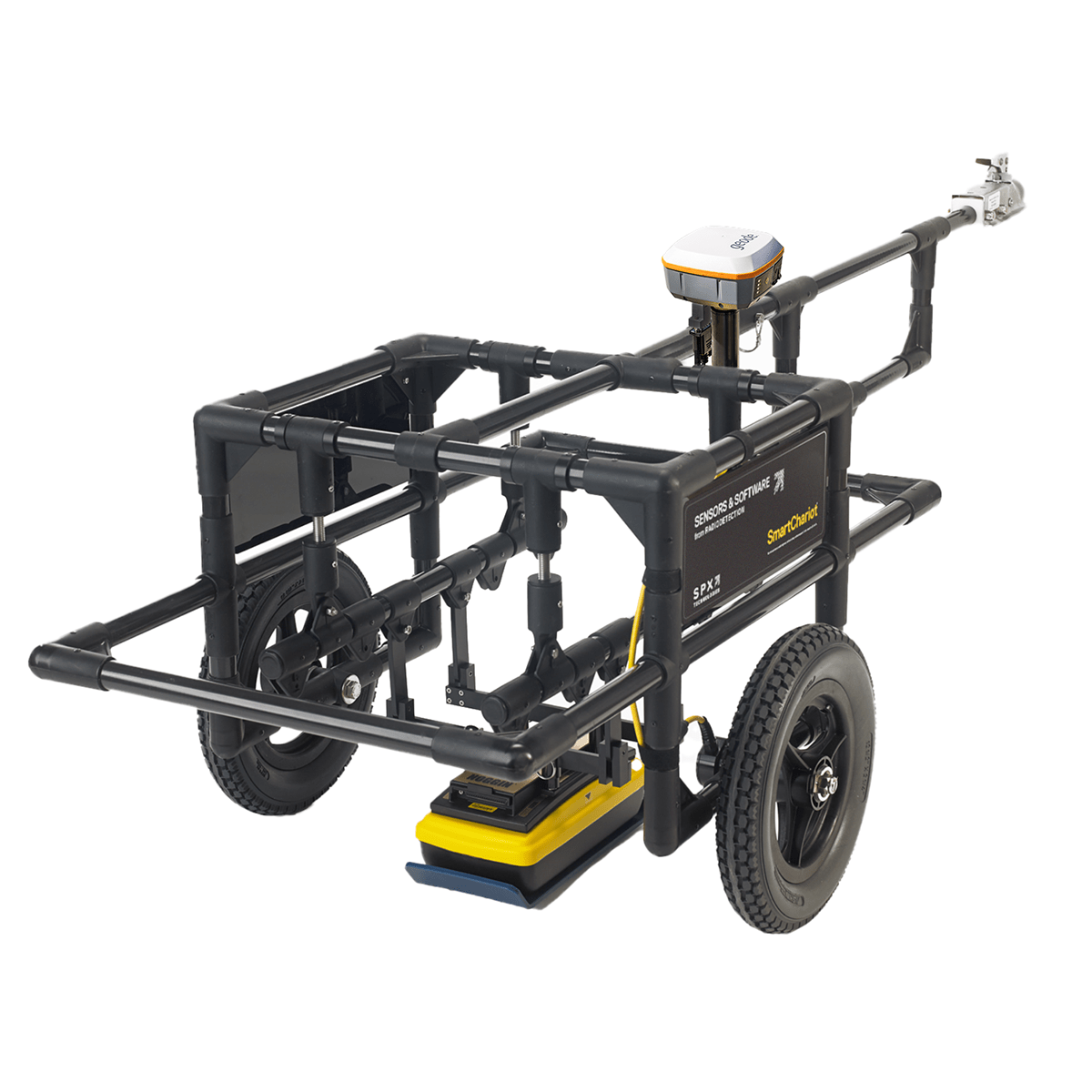

Large, flat, open areas; roads, parks, golf courses N/A Noggin 250 GPR on the SmartChariot Noggin 500 GPR on the SmartChariot Noggin 1000 GPR on the SmartChariot

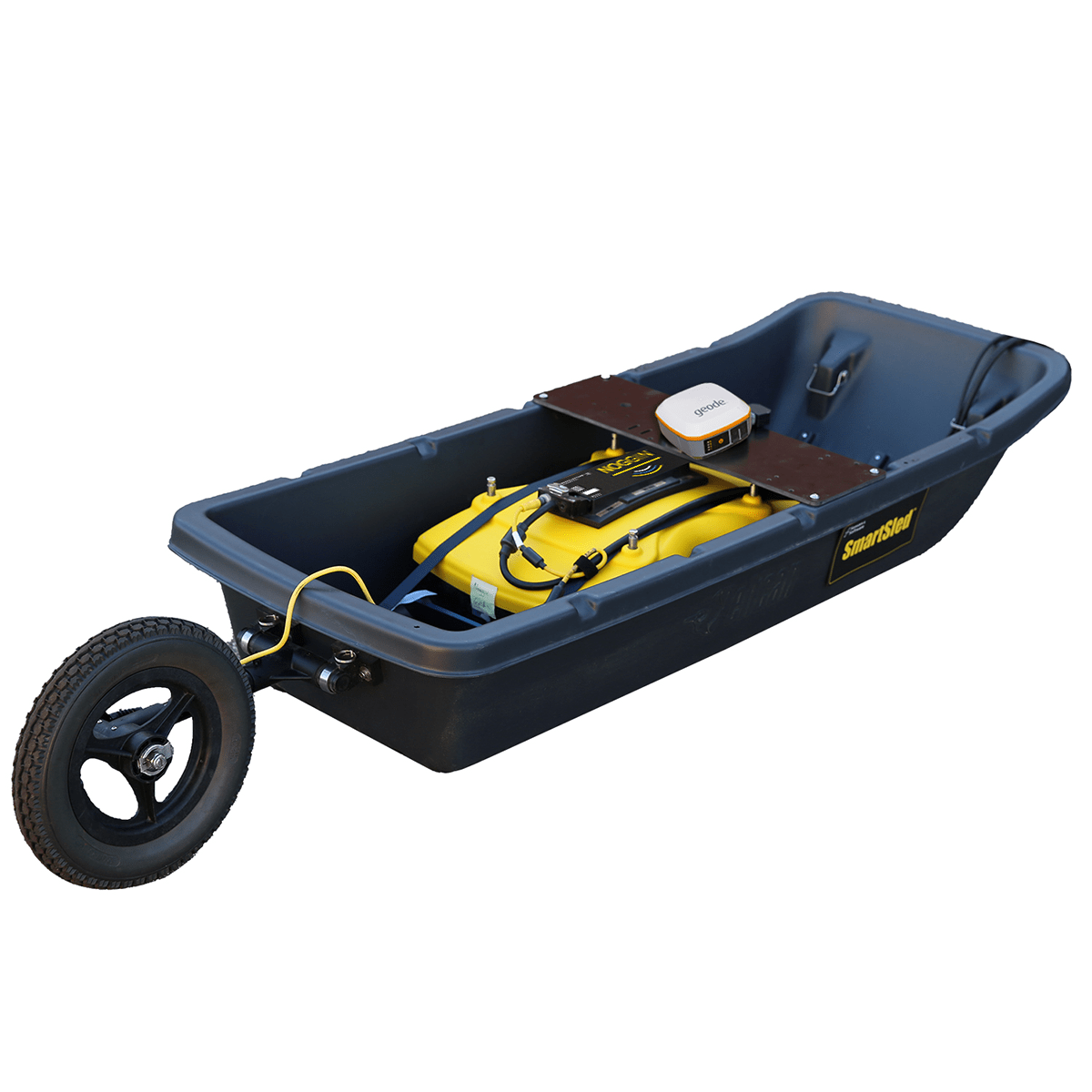

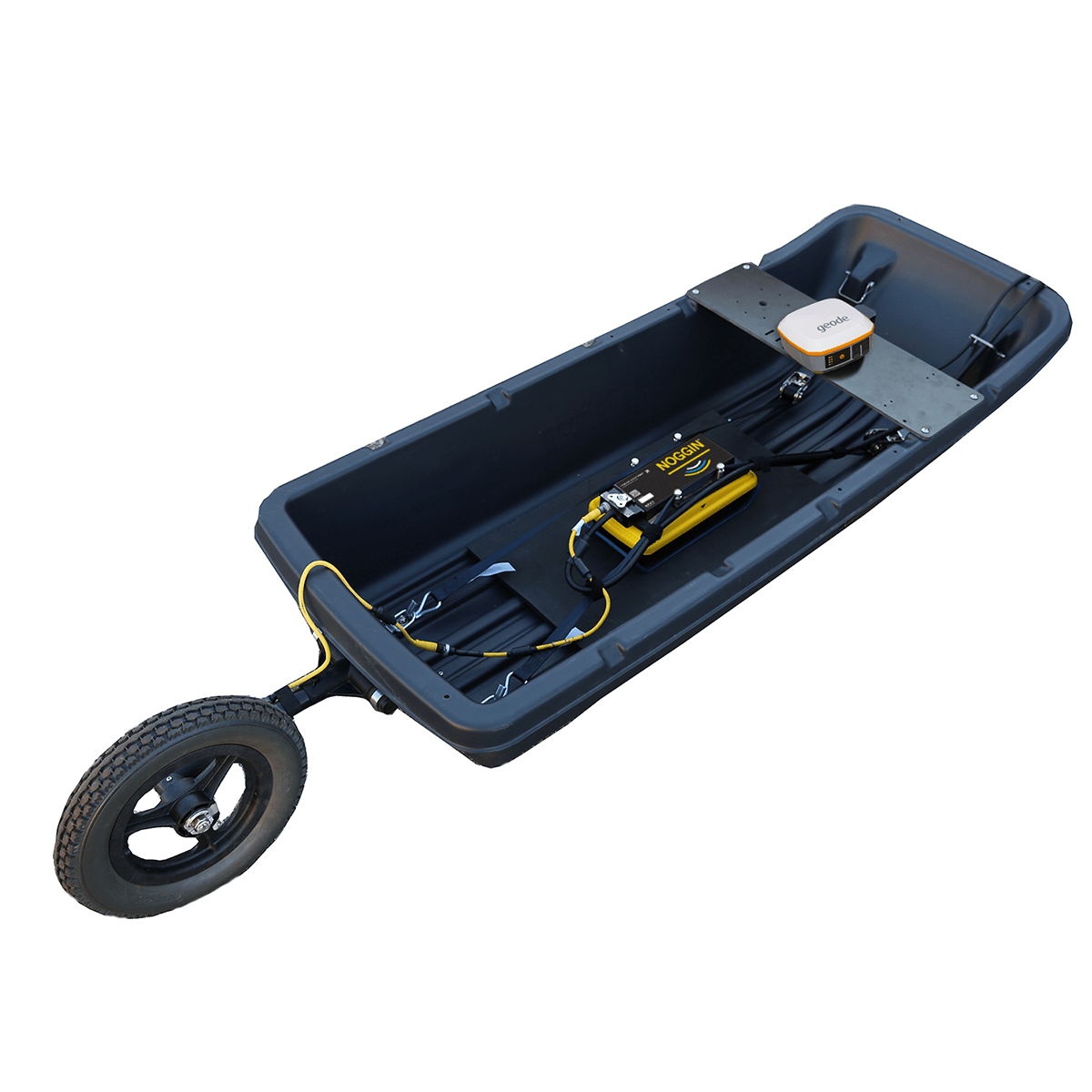

SmartHandle:
Light, compact pull or push

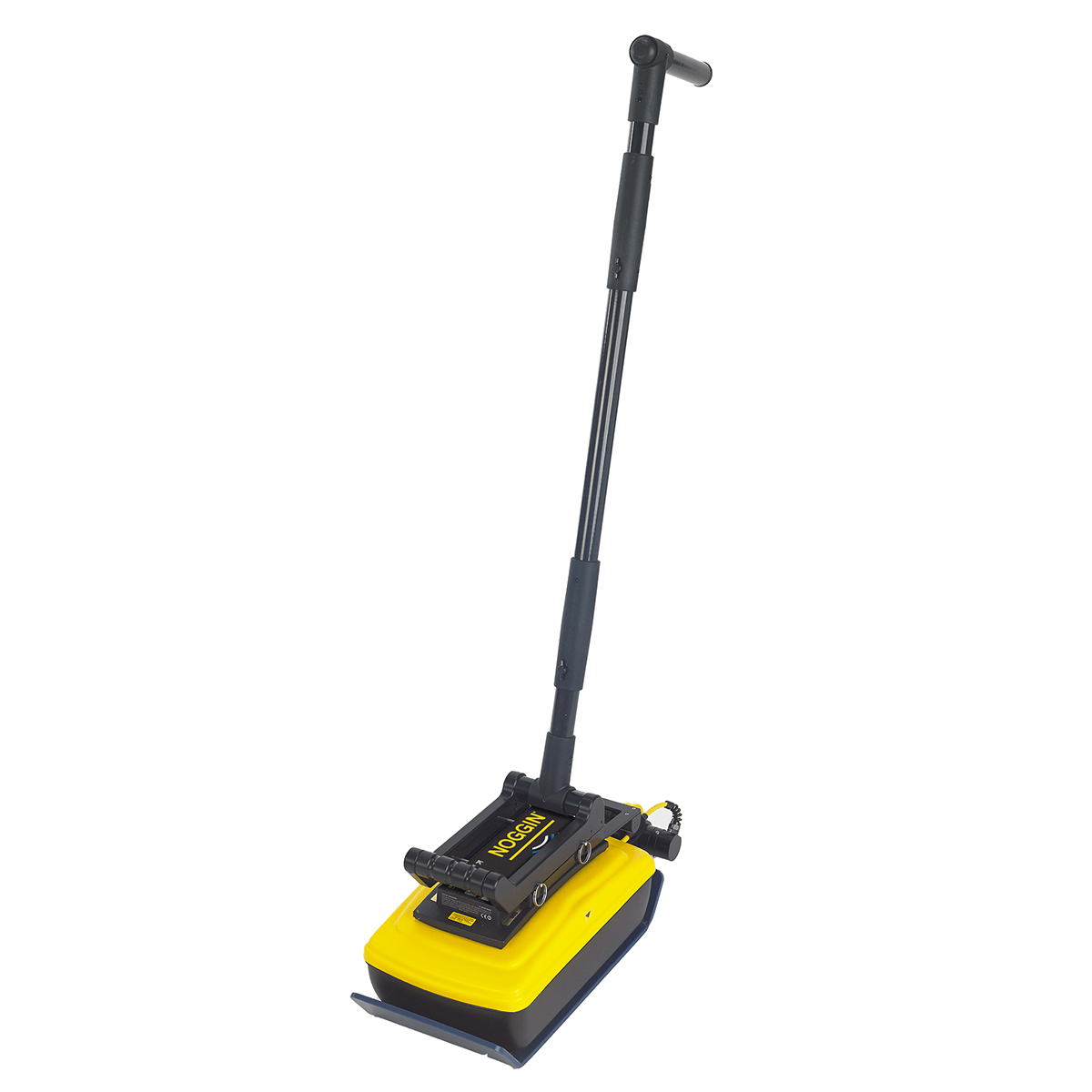

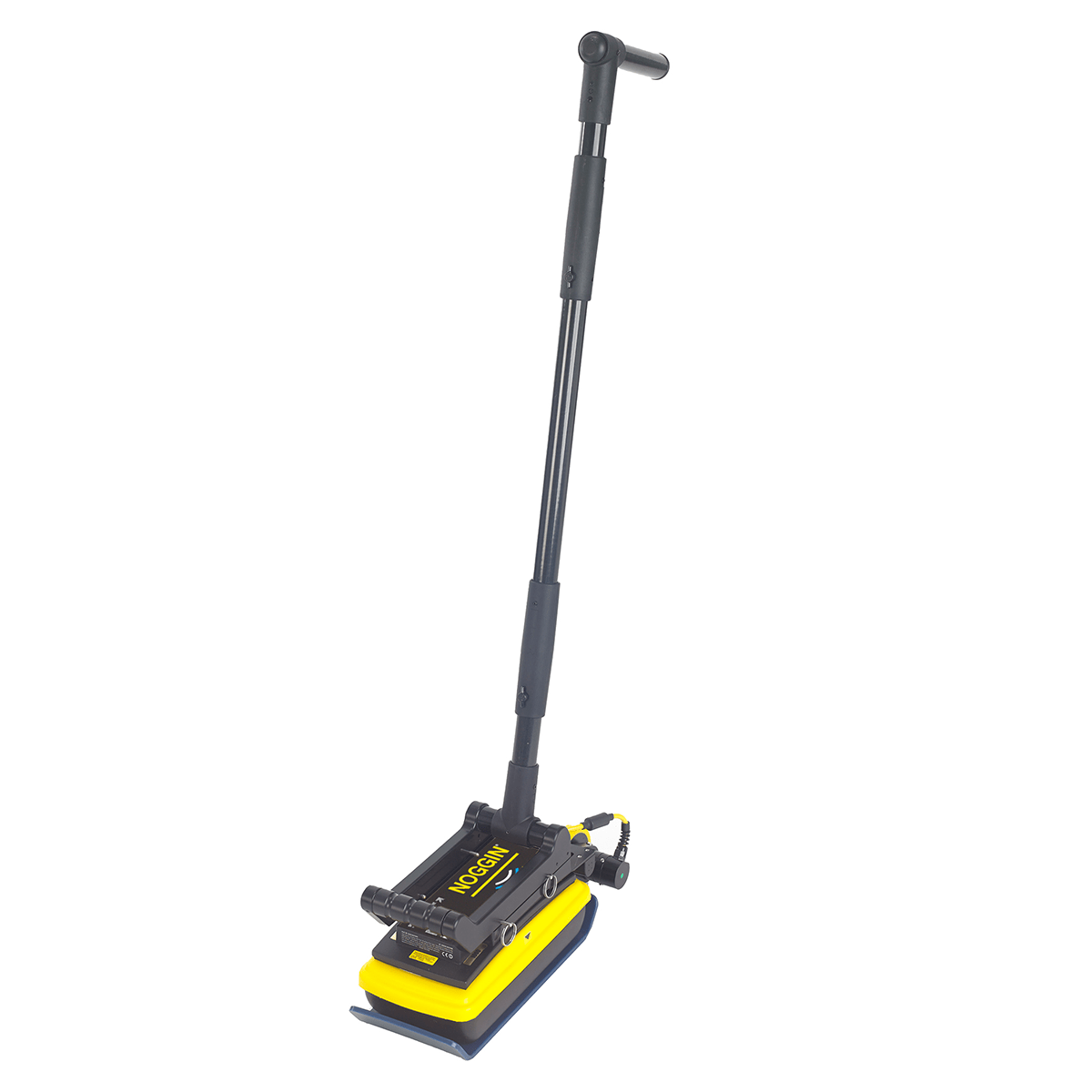

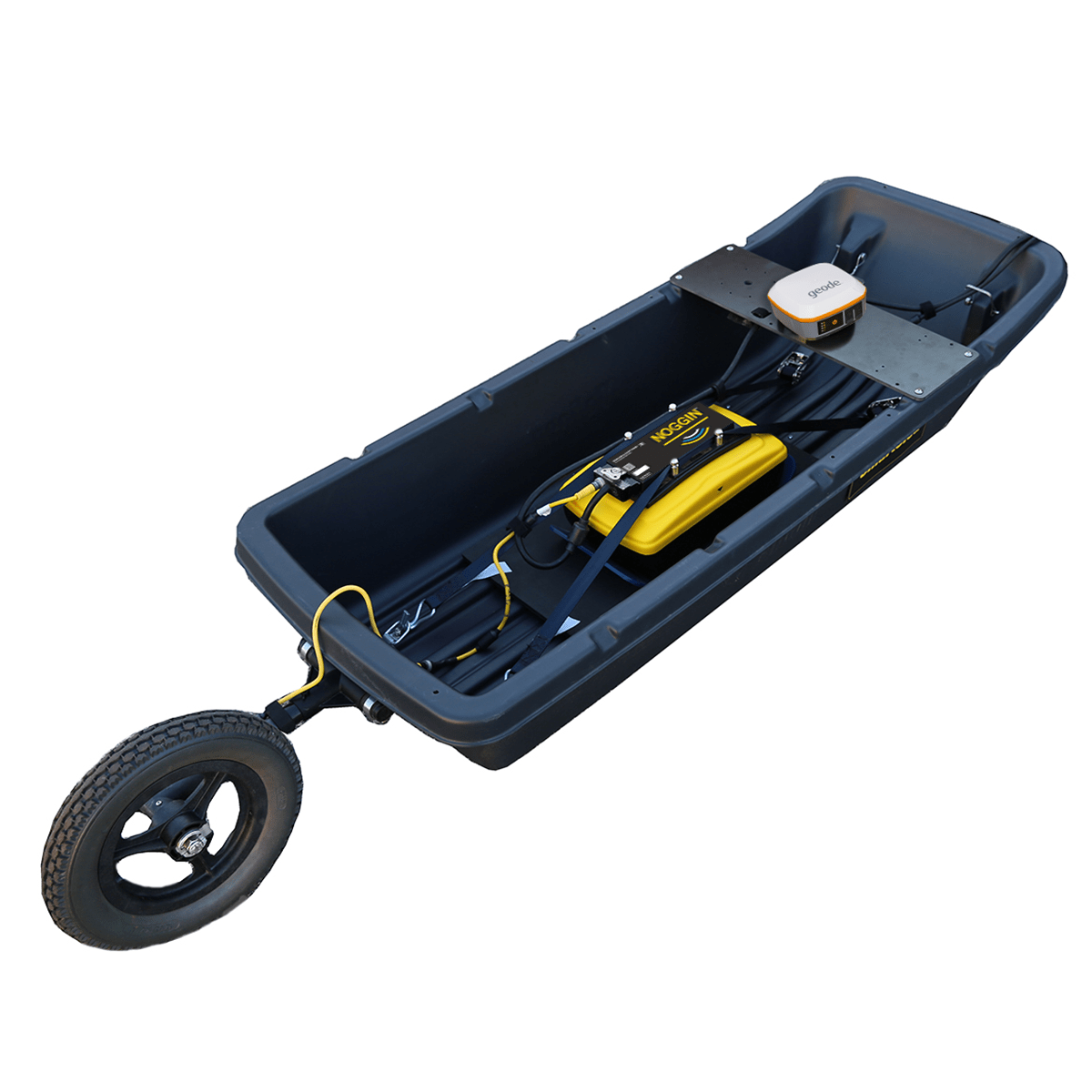

Vertical or overhead surfaces; confined spaces N/A N/A Noggle 500 GPR on the SmartHandle Noggle 1000 GPR on the SmartHandle



Powerful yet simple data collection

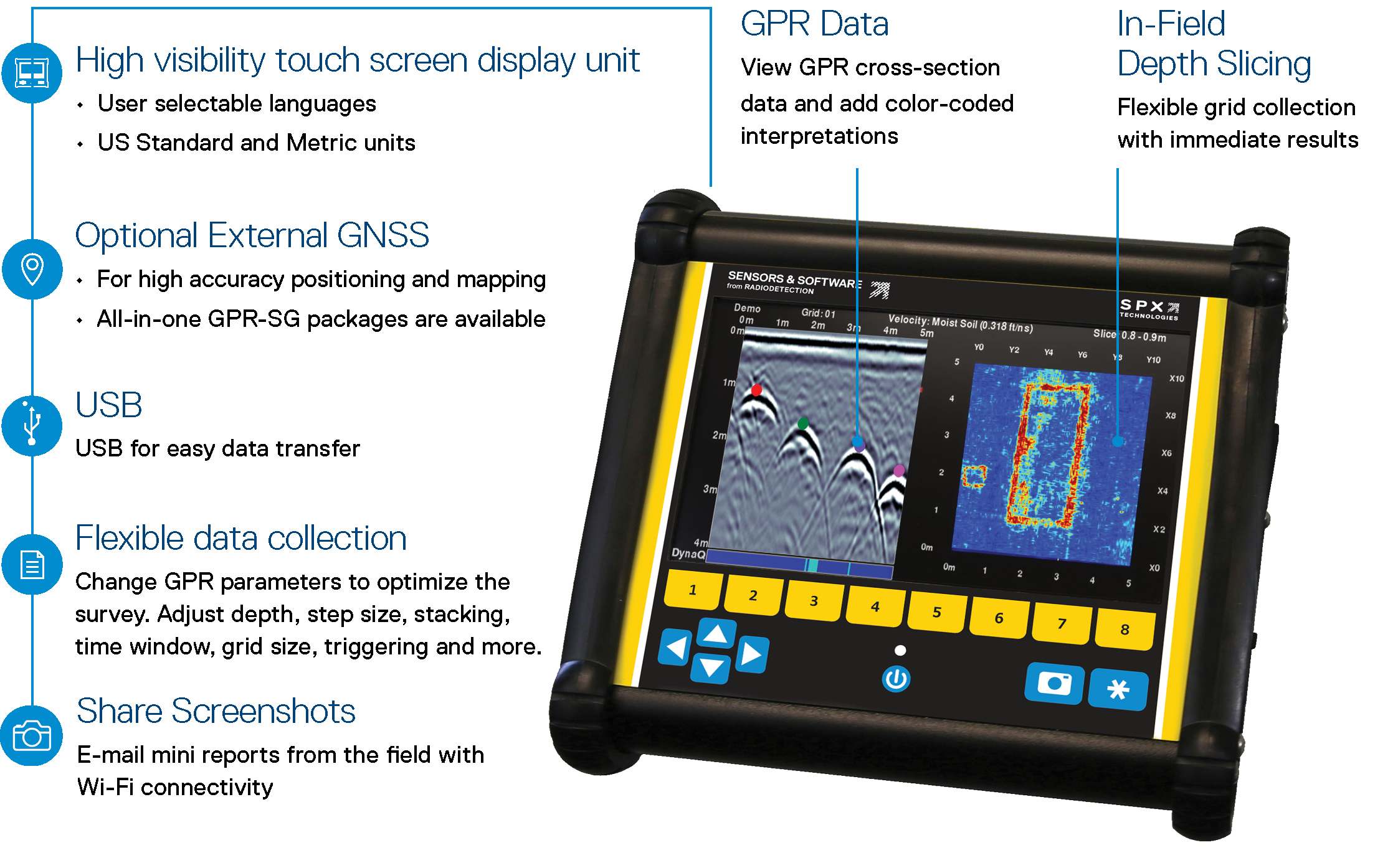

Adjust data collection parameters and easily view data in the field with the high resolution, sunlight visible, touchscreen digital video logger (DVL).
DVL 500 Noggin

Rugged by design Noggins are used in a wide range of environments, temperatures, and weather conditions.
Ultra-wide band (UWB) GPR antennas Ground-coupled for maximum signal penetration and data quality.
Digital Video Logger High resolution, sunlight visible, resistive touch screen with Wi-Fi and USB data transfer.
Flexible data collection Change GPR parameters to optimize the survey. Adjust depth, step size, stacking, time window, grid size, triggering and more.

Mini reports and Noggin Data

Wi-Fi mini-reports Email a report of line, depth slice or map view data to your customers or colleagues.

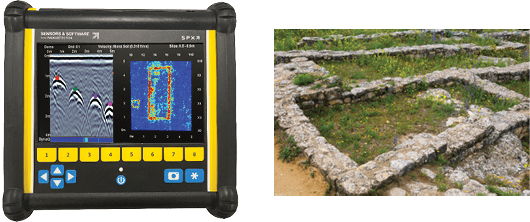

Depth slicing Collect grids of data and view depth slices right in the field.

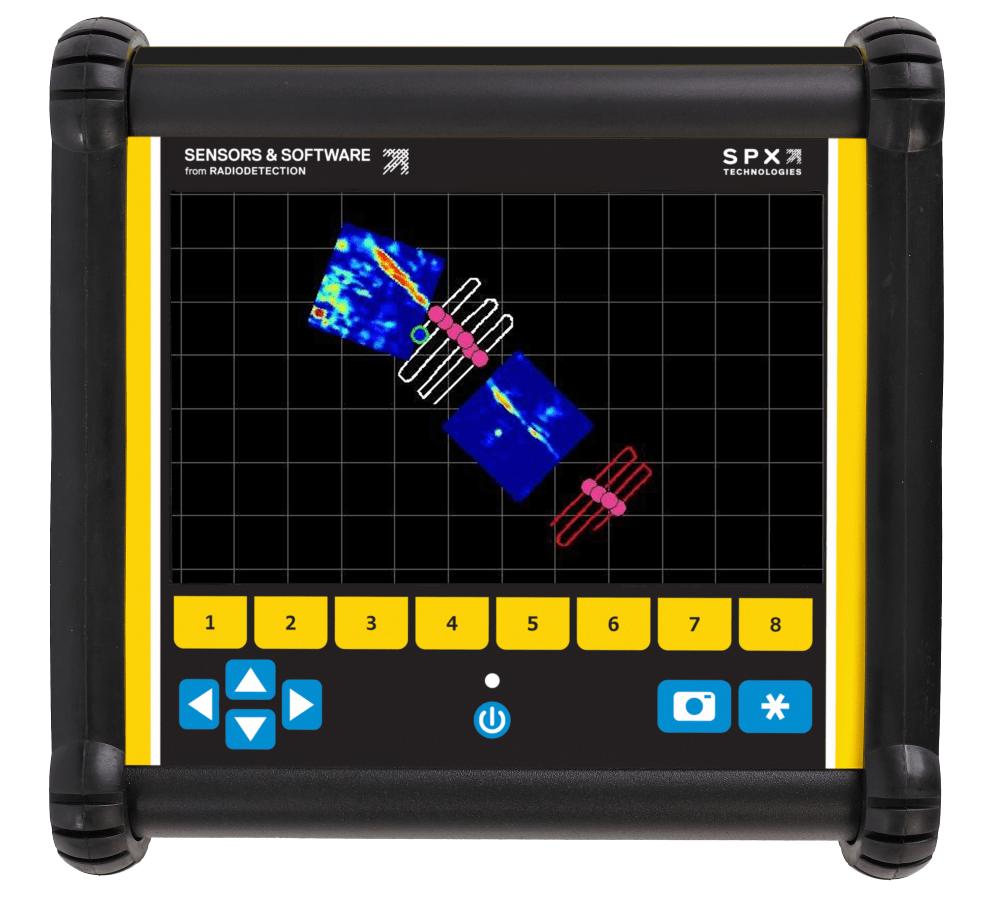

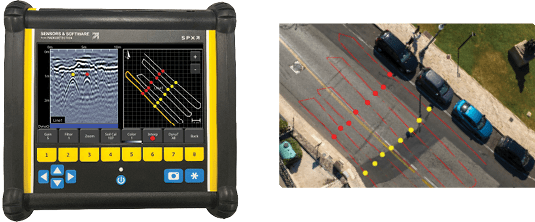

Map view Using external GPS, display a plan map view of survey path, grids, field interpretations and flags.
Field interpretations Add color-coded interpretations and field flags with the touch of a finger.
Optional GPS Integrated GPS for post-processing and export to Google Earth™, CAD drawings & GIS databases.
Multi-language English, French, German, Spanish, Japanese, Simplified Chinese, Farsi, Russian, Arabic.

The data collection software on the DVL 500 Noggins have default settings to get to work quickly; for line surveys just set the desired depth and start collecting.
For grid collection, the GPR operator sets the grid size and line spacing. The screen prompts the user to collect each line until the grid is complete. It is easy to work around obstructions, skip lines or recollect lines if required.
Once the grid is finished (or any time after at least 3 lines have been collected), the grid data can be processed into depth slices (right in the field!).

For users involved in unusual projects, Noggins also have custom settings to collect data with extreme values:

• Depths to 200 meters (320 m in ice)

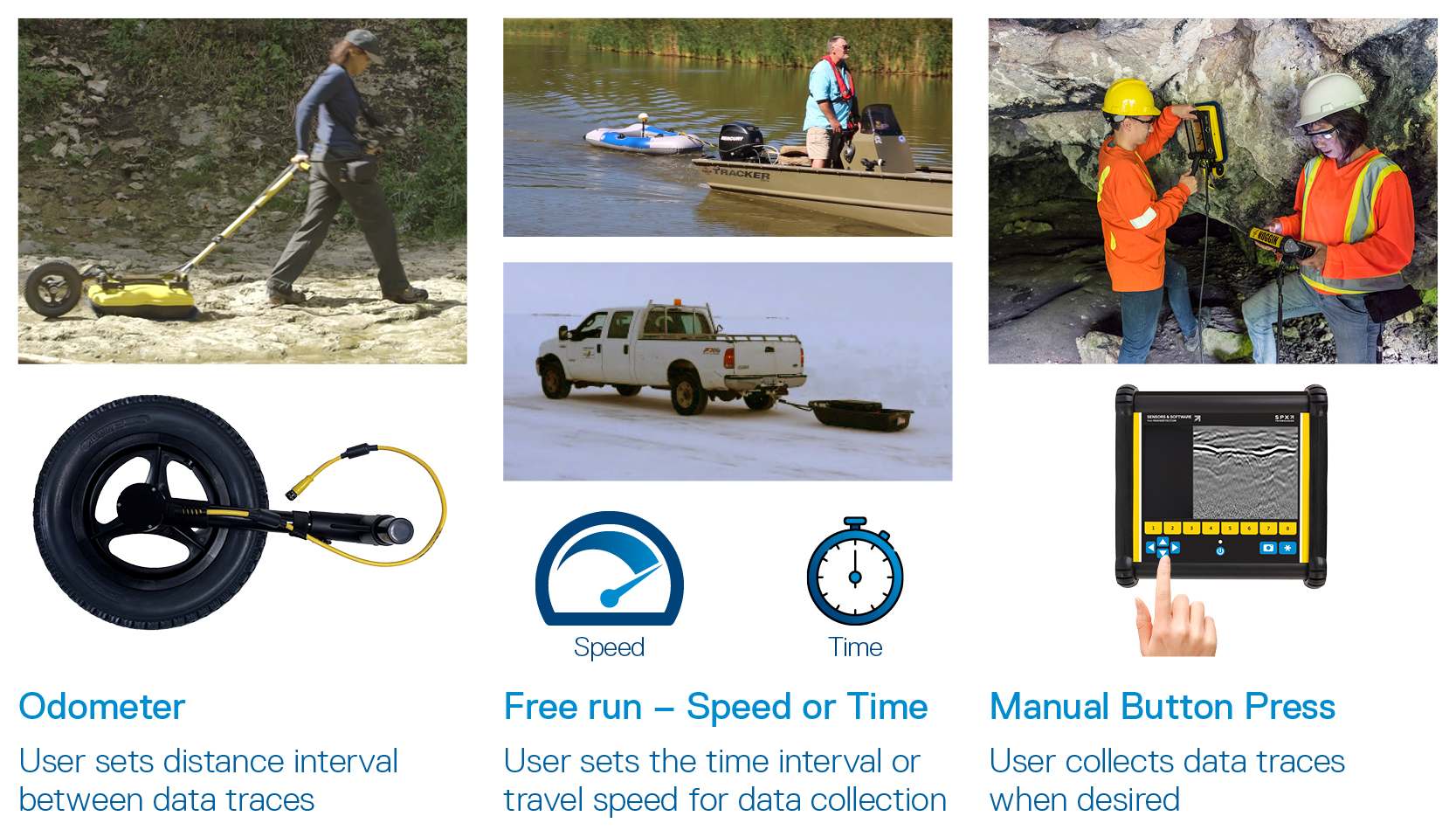

• Triggering options include Odometer, Button and Free-Run modes
• Free Run in Time or Free-Run with Speed to collect data on water, snow or ice
• Grids up to 250 x 250m in size
• Zig-zag grid collection pattern
• Step Sizes from 5 millimeters to 5 meters

Create impressive deliverables easily with EKKO_Project™ software.

After data collection is finished, transfer the data to your computer and organize, edit, process and plot your GPR data with EKKO_Project™. See your data in seconds – spend your time understanding the data, not importing and integrating ancillary information.
EKKO_Project™’s reporting capability outputs interpretations and other information into PDF, spreadsheet (csv), Google Earth™ (kmz) and CAD (dxf) files.
Ekko_Project_Noggin
Noggin® systems provide valuable insights in countless subsurface applications. As your GPR knowledge and expertise grow, use your Noggin® system to expand your business into new markets. Easily add another sensor, a new configuration or accessories to your existing Noggin® system and your subsurface investigation opportunities are limitless.

Harness:

This new harness is compatible with all DVL 500s. It weighs only 2.9lbs (1.3 kg) and is a hybrid design of nylon webbing, high-density polymer, and lightweight steel.

  • Compact and lightweight for easy transportation to the job site
  • Angle adjustment – increase productivity by keeping the screen visible at all times.
  • Wide straps – comfortable for long hours in the field
  • Quick release straps – easy to put on and adjust for any body type
  • Adjusts easily to fit overtop of outerwear
